Navigation: Technical Information > Cobwebb APIs & Commands

RTVPRTF - Retrieve Printer File Details

Scroll Prev Top Next More

From version 6.2.78 - This command allows you to retrieve the details of the records and fields that exists in the selected Printer File. Please Note: This can only be used with externally defined Printer Files. The results can help with designing your PPD where you may not have all the information in your spooled file page.

This command can be found on the Cobwebb Tools Menu - Option 4. Alternatively, with library CPPD in your Library List, enter RTVPRTF on a command line and press F4=Prompt.

Command Parameters

Printer File Name (FILE)

Enter the name of the Printer File whose details you wish to display.


The library name where the above Printer File resides.

Running the Command

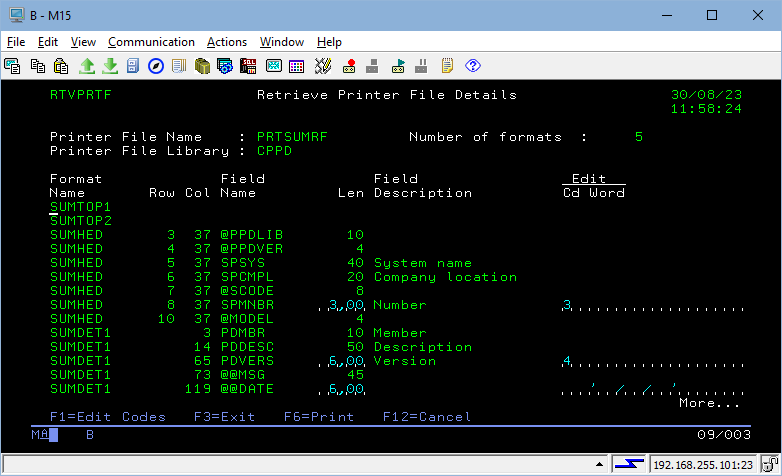

The following screen shot is the result of running the following command on the Server.



The Format Name is a section of the spool file and in the above example there are 4, SUMTOP1 and SUMTOP2 which do not have any field information, SUMHED for Header information and SUMDET1 for detail information. In some instances the Row number not displayed as this can be set at run time, but the Column Number is set. In the above example you can see SPCMPL, which is the company location and you can see that it can be up to 20 characters in length.

Function Keys

F1=Edit Codes

Displays the meaning of the Edit codes.

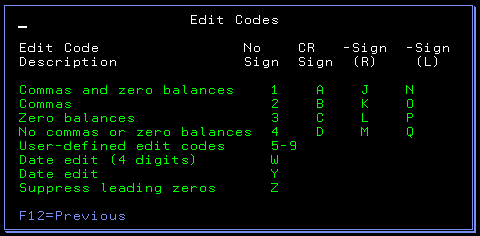

Edit Codes


Exits the command


Prints the Printer file details (from version 6.2.87)


Cancels the command
